TartanMatch.

TartanMatch

Towards Universal Dense Correspondence
Across Modalities

Hyeokjoon Kwon*, Jiting Cai*†, Ruogu Li*, Kritan Bhandari, Geethika Hemkumar,
Parv Maheshwari, Yuheng Qiu, Yuchen Zhang, Sebastian Scherer, Wenshan Wang

* Equal contribution † Corresponding author

Robotics Institute, Carnegie Mellon University

Paper (PDF) ↗ Explore the demosCode ↗Weights ↗

01 / ABSTRACT

Robotic platforms combine complementary sensors to maintain perception across diverse operating conditions, but dense correspondence methods are typically designed for RGB or for a small set of modality pairs. Relying on pair-specific models scales poorly with the number of sensors and forgoes potential positive transfer across modality pairs. We introduce TartanMatch, a unified model for dense correspondence across all 25 ordered pairs among RGB, event, thermal, depth, and projected LiDAR. TartanMatch adapts an RGB-pretrained correspondence model to modality-specific representation and learns all sensor pairs within one shared network using a mixture of real and synthetic data. On zero-shot real-world benchmarks, TartanMatch reduces endpoint error over the strongest per-pair baseline by 61.9% (cross-modal) and 49.6% (same-modal). We further show that joint training improves average matching accuracy over pair-specific training, especially on challenging cross-modal pairs. These results demonstrate that broad multimodal coverage and strong matching performance can coexist in a single model.

02 / SEE IT MATCH

One model. Any sensor. Any pair.

Explore dense correspondence across the full modality space.

Choose a demo

SELECT A MODALITY PAIR

Source ↓Target →

RGB to Event

Source RGBfixed viewTarget Eventmoving viewSource moved into target viewshould line up with the target
Synthetic sequences from TartanAir V2. Use the grid or arrow keys to choose a pair.

03 / KEY RESULTS

One model for all 25 sensor pairs

One set of weights matches RGB, event, thermal, depth, and LiDAR in every direction.

Much lower error than existing matchers

61.9% lower cross-modal error and 49.6% lower same-modal error on unseen real-world datasets.

See the accuracy results
Average endpoint error (px) ↓
TartanMatchBest other method

Training on all pairs together beats one model per pair

Joint training improves 11 of 15 pairs, reducing average cross-modal error by 34.1%.

See all 15 pairs
Average endpoint error (px) ↓
Joint modelOne model per pair

TartanAir V2 validation

04 / THE METHOD

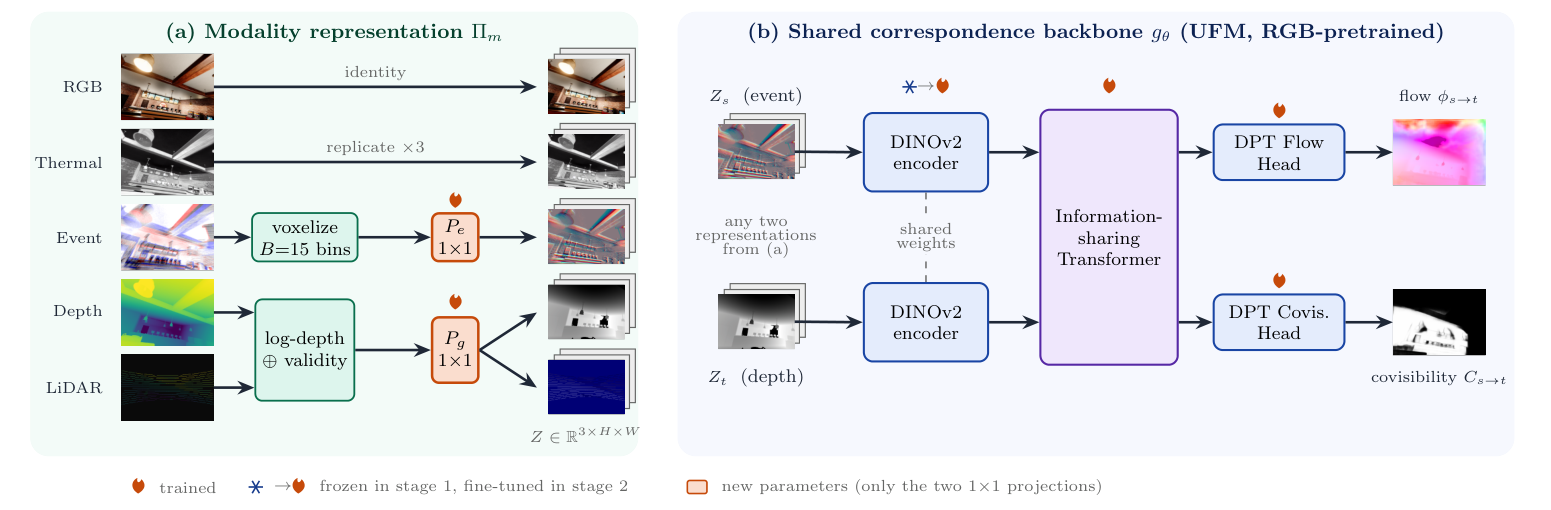

Five inputs with one shared backbone.

Preserve each sensor’s representation and learn dense correspondence together.

01

Keep the sensor representation

RGB enters directly; thermal intensity is replicated across three channels. Events use 15 temporal bins. Depth and projected LiDAR use log-depth + validity, preserving missing measurements explicitly.

02

Share the matching model

Learned 1 × 1 projections map event and geometric inputs to three channels. A shared DINOv2 encoder, information-sharing transformer, and DPT heads predict dense flow and covisibility.

03

Adapt in two stages

First, freeze the encoder while the input projections and matcher adapt. Then, fine-tune the full network to absorb the remaining modality shift.

Freeze 10 epochs→Fine-tune 35 epochs
TRAINING DATA

Real + synthetic data

No single dataset covers every sensor pair. We combine 16 sources across indoor, outdoor, aerial, and driving scenes, using native flow labels, geometry-derived correspondence, and synthesized thermal imagery.

16training sources650kpairs / epoch5zero-shot benchmarks
TartanAirV2 36.3%MegaDepth 20.2%DSEC 10.9%TartanAirV2 WB 9.7%12 other sources 22.9%
05 / QUANTITATIVE RESULTS

Universal coverage with strong matching performance

Evaluated on real sensors from datasets held out of training.

Accuracy

Dense matching and relative pose on unseen real-world datasets.

Cross-modal correspondence

EPE (px) ↓
TartanMatchStrongest baseline per evaluation
View exact values and baselines +

Joint training

One shared model versus 15 pair-specific models on TartanAir V2 validation. Lower error is better.

One model per pairJoint model (TartanMatch)

11 of 15 pairs improve. Average error drops by 34.1% across modalities and 17.8% within the same modality.

Speed

Milliseconds per image pair on H100. Shorter bars are faster.

27.8 ms per pair, about the same as UFM and 7.4× faster than MatchAnything.

06 / PAPER & CITATION

Build on TartanMatch.

Paper (PDF) ↗
BIBTEX
@article{kwon2026tartanmatch,
  title = {TartanMatch: Towards Universal Dense
           Correspondence Across Modalities},
  author = {Kwon, Hyeokjoon and Cai, Jiting and
            Li, Ruogu and Bhandari, Kritan and
            Hemkumar, Geethika and Maheshwari, Parv and
            Qiu, Yuheng and Zhang, Yuchen and
            Scherer, Sebastian and Wang, Wenshan},
  journal = {arXiv preprint},
  year = {2026}
}
Enlarged TartanMatch architecture
